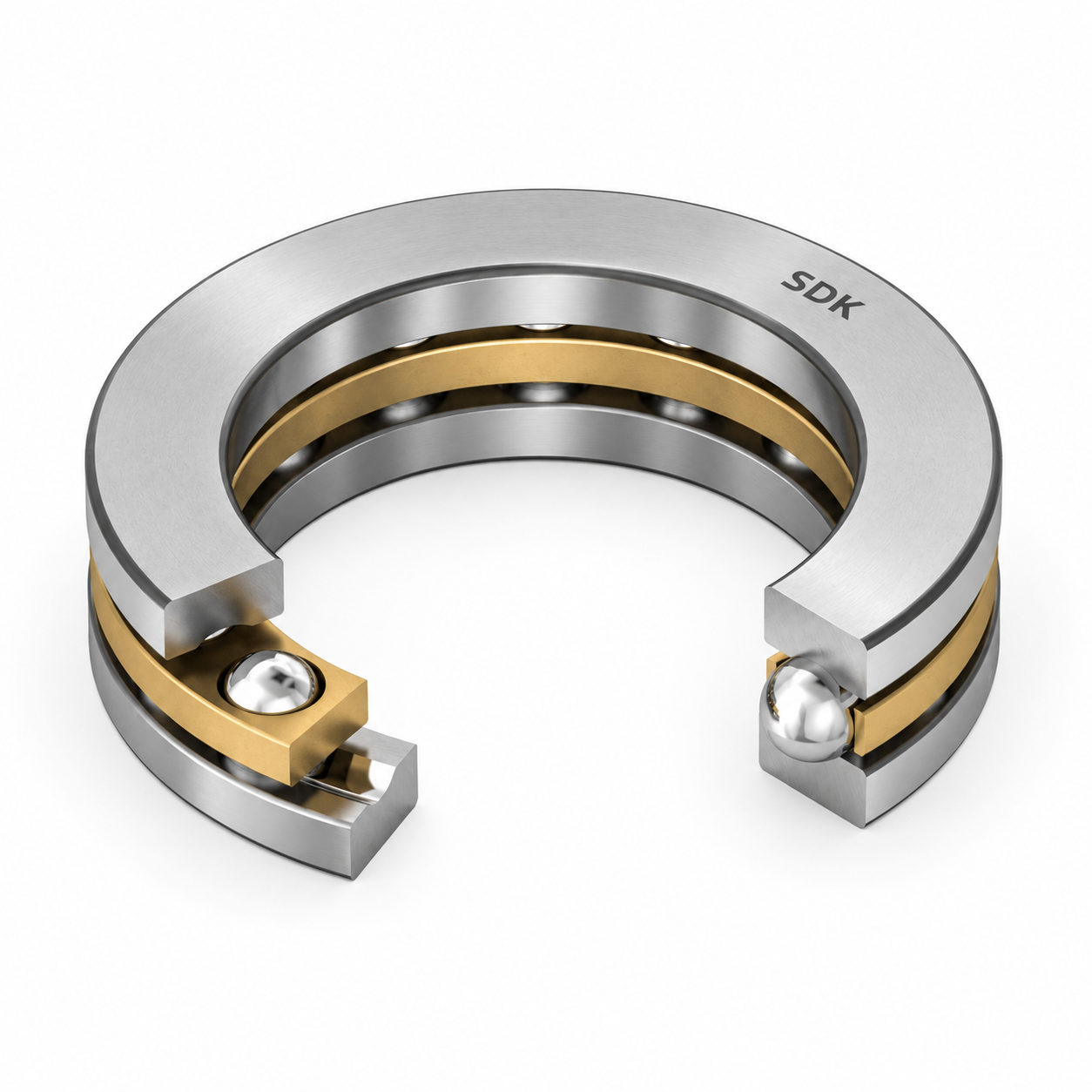

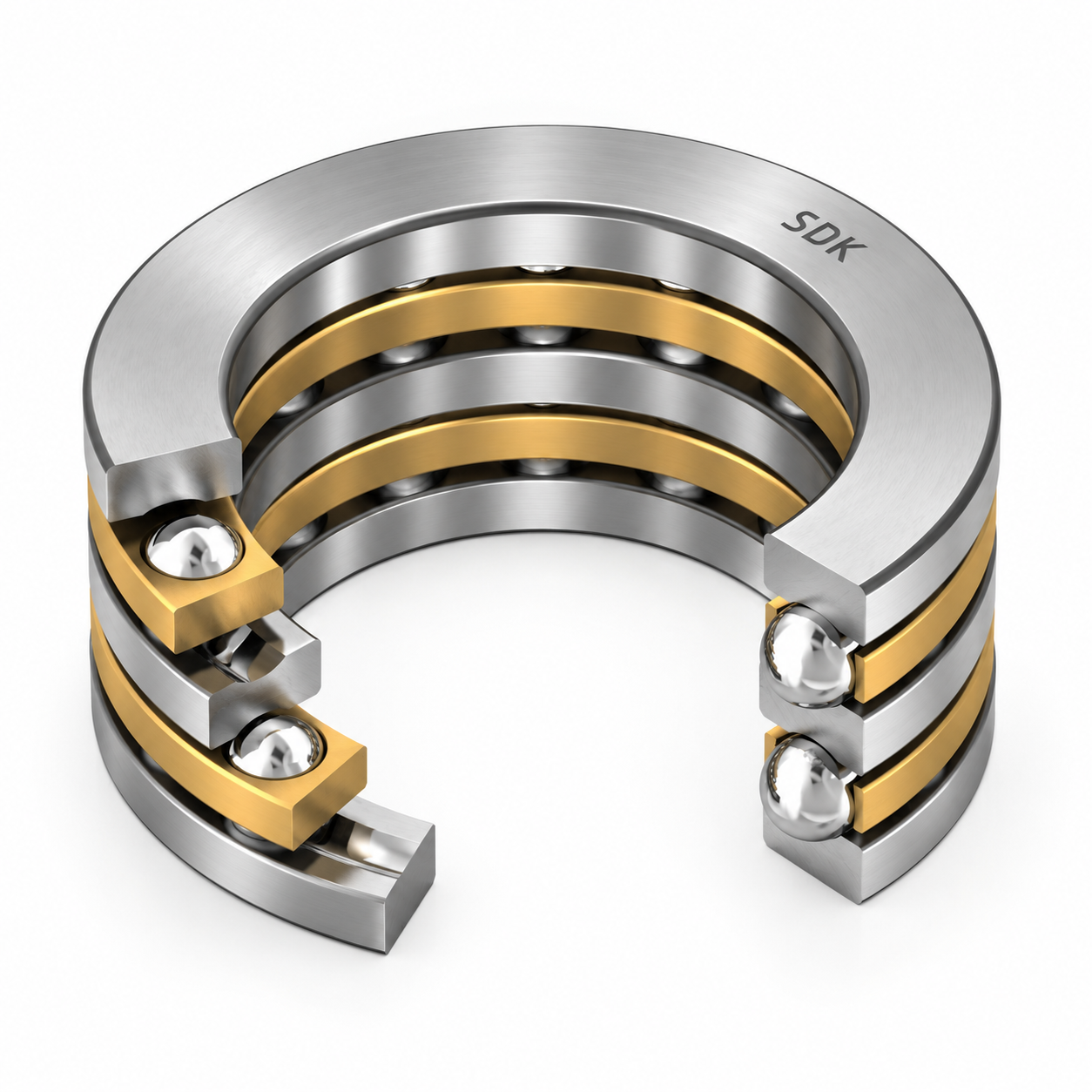

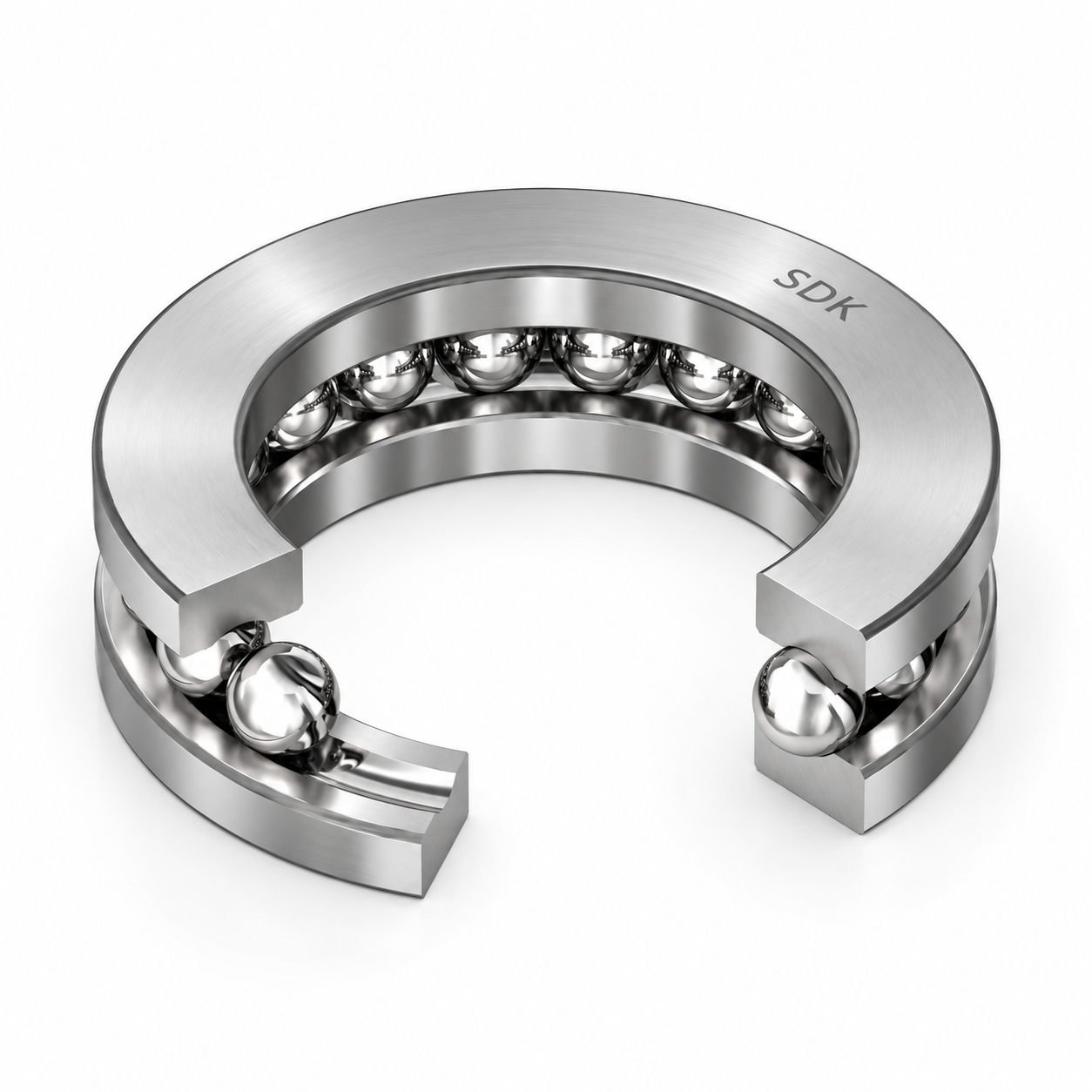

Thrust Ball Bearings
Premium quality Thrust Ball Bearings designed for high durability and performance in demanding industrial applications. Product specifications and configuration may vary according to the selected manufacturer, design and application requirements. Where applicable, supplier certificates and inspection records can be provided.
Key Advantages
- High load capacity
- Precision engineered
- Extended service life
- Low friction and noise
Industrial Applications
Available Cage Materials
Technical Specifications
Product Quality Statement
SDK Bearings products are sourced and supplied according to defined product specifications and customer requirements. Depending on the product and application, technical specifications may vary according to the selected manufacturer, design, clearance, sealing arrangement, and lubrication.
Customers are encouraged to confirm the required specification before placing an order. Where applicable, supplier certificates, inspection records, and product documentation can be provided according to customer and product requirements.
Dimensional Data
| Designation | Bore d (mm) | Outside Diameter D (mm) | Width B (mm) | Chamfer r min (mm) | Dynamic Load C (kN) | Static Load C0 (kN) | Speed (r/min) |
|---|---|---|---|---|---|---|---|
| 51100 | 10 | 24 | 8 | 0.3 | 17.5 | 14.0 | 12000 |
| 51101 | 12 | 27 | 9 | 0.3 | 21.8 | 17.4 | 11000 |
| 51102 | 15 | 31 | 10 | 0.3 | 29.4 | 23.5 | 9800 |
| 51103 | 17 | 34 | 10 | 0.3 | 35.2 | 28.2 | 9200 |
| 51104 | 20 | 38 | 11 | 1 | 45.0 | 36.0 | 8500 |
| 51105 | 25 | 45 | 13 | 1 | 64.4 | 51.5 | 7600 |
| 51106 | 30 | 50 | 14 | 1 | 87.5 | 70.0 | 6900 |
| 51107 | 35 | 60 | 16 | 1 | 114.4 | 91.5 | 6400 |
| 51108 | 40 | 65 | 17 | 1 | 145.0 | 116.0 | 6000 |
| 51109 | 45 | 75 | 19 | 1 | 179.4 | 143.5 | 5700 |
| 51110 | 50 | 80 | 20 | 1.5 | 217.5 | 174.0 | 5400 |
| 51111 | 55 | 85 | 22 | 1.5 | 259.4 | 207.5 | 5100 |
| 51112 | 60 | 95 | 24 | 1.5 | 305.0 | 244.0 | 4900 |
| 51113 | 65 | 100 | 26 | 1.5 | 354.4 | 283.5 | 4700 |
| 51114 | 70 | 110 | 26 | 1.5 | 407.5 | 326.0 | 4500 |
| 51115 | 75 | 115 | 28 | 1.5 | 464.4 | 371.5 | 4400 |
| 51116 | 80 | 120 | 30 | 1.5 | 525.0 | 420.0 | 4200 |
| 51117 | 85 | 130 | 32 | 1.5 | 589.4 | 471.5 | 4100 |
| 51118 | 90 | 135 | 32 | 1.5 | 657.5 | 526.0 | 4000 |
| 51119 | 95 | 145 | 34 | 1.5 | 729.4 | 583.5 | 3900 |
| 51120 | 100 | 150 | 36 | 2 | 805.0 | 644.0 | 3800 |
| 51121 | 105 | 155 | 38 | 2 | 884.4 | 707.5 | 3700 |
| 51122 | 110 | 165 | 38 | 2 | 967.5 | 774.0 | 3600 |
| 51123 | 115 | 170 | 40 | 2 | 1054.4 | 843.5 | 3500 |
| 51124 | 120 | 180 | 42 | 2 | 1145.0 | 916.0 | 3500 |
| 51125 | 125 | 185 | 44 | 2 | 1239.4 | 991.5 | 3400 |
| 51126 | 130 | 190 | 44 | 2 | 1337.5 | 1070.0 | 3300 |
| 51127 | 135 | 200 | 46 | 2 | 1439.4 | 1151.5 | 3300 |
| 51128 | 140 | 205 | 48 | 2 | 1545.0 | 1236.0 | 3200 |
| 51129 | 145 | 215 | 50 | 2 | 1654.4 | 1323.5 | 3200 |
| 51130 | 150 | 220 | 50 | 2 | 1767.5 | 1414.0 | 3100 |
| 51131 | 155 | 225 | 52 | 2 | 1884.4 | 1507.5 | 3000 |
| 51132 | 160 | 235 | 54 | 2 | 2005.0 | 1604.0 | 3000 |
| 51133 | 165 | 240 | 56 | 2 | 2129.4 | 1703.5 | 3000 |
| 51134 | 170 | 250 | 56 | 2 | 2257.5 | 1806.0 | 2900 |
| 51135 | 175 | 255 | 58 | 2 | 2389.4 | 1911.5 | 2900 |
| 51136 | 180 | 260 | 60 | 2 | 2525.0 | 2020.0 | 2800 |
| 51137 | 185 | 270 | 62 | 2 | 2664.4 | 2131.5 | 2800 |
| 51138 | 190 | 275 | 62 | 2 | 2807.5 | 2246.0 | 2800 |
| 51139 | 195 | 285 | 64 | 2 | 2954.4 | 2363.5 | 2700 |
| 51140 | 200 | 290 | 66 | 3 | 3105.0 | 2484.0 | 2700 |
| 51141 | 205 | 295 | 68 | 3 | 3259.4 | 2607.5 | 2700 |
| 51142 | 210 | 305 | 68 | 3 | 3417.5 | 2734.0 | 2600 |
| 51143 | 215 | 310 | 70 | 3 | 3579.4 | 2863.5 | 2600 |
| 51144 | 220 | 320 | 72 | 3 | 3745.0 | 2996.0 | 2600 |
| 51145 | 225 | 325 | 74 | 3 | 3914.4 | 3131.5 | 2500 |
| 51146 | 230 | 330 | 74 | 3 | 4087.5 | 3270.0 | 2500 |
| 51147 | 235 | 340 | 76 | 3 | 4264.4 | 3411.5 | 2500 |
| 51148 | 240 | 345 | 78 | 3 | 4445.0 | 3556.0 | 2400 |
| 51149 | 245 | 355 | 80 | 3 | 4629.4 | 3703.5 | 2400 |
